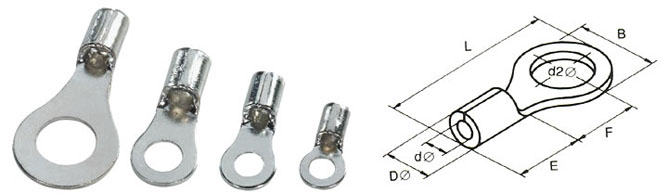

Circular bare terminal(TO type)

Inquire

Product Description

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 )   Imax = 19A
ITEMNO Dimension  （mm)
USABOLTNO BOLT dia.  d2Φ B L F H DΦ dΦ
RNB1.25 - 3 #4 3.2mm 5.7 12.6 4.95 4.8 3.4 1.7
RNBS1.25 - 3.5 #6 3.7mm 5.7 12.6 4.95
RNBM1.25 - 3.5 #6 3.7mm 6.6 14.4 6.3
RNBL1.25 - 3.5 #6 3.7mm 8.0 15.8 7.0
RNBS1.25 - 4 #8 4.3mm 6.6 14.4 6.3
RNBL1.25 - 4 #8 4.3mm 8.0 15.8 7.0
RNB1.25 - 5 #10 5.3mm 8.0 15.8 7.0
RNB1.25 - 6 1/4 6.5mm 11.6 21.8 11.1
RNB1.25 - 8 5/16 8.4mm 11.6 21.8 11.1
RNB1.25 - 10 3/8 10.5mm 13.6 25.5 13.9

Section of lead1.5 - 2.5 mm² (USA Spec 16 - 14)   Imax = 27A
ITEMNO Dimension (mm)
USABOLTNO BOLT dia.  d2Φ B L F H DΦ dΦ
RNB2 - 3 #4 3.2mm 6.6 12.3 4.3 4.8 4.1 2.3
RNBS2 - 3.5 #6 3.7mm 6.6 12.3 4.3
RNBM2 - 3.5 #6 3.7mm 6.6 16.0 7.0
RNBL2 - 3.5 #6 3.7mm 8.5 16.8 7.75
RNBS2 - 4 #8 4.3mm 6.6 16.0 7.0
RNBL2 - 4 #8 4.3mm 8.5 16.8 7.75
RNBS2 - 5 #10 5.3mm 8.5 16.8 7.75
RNBL2 - 5 #10 5.3mm 9.5 16.8 7.25
RNB2 - 6 1/4 6.5mm 12.0 21.8 11.0
RNB2 - 8 5/16 8.4mm 12.0 21.8 11.0
RNB2 - 10 3/8 10.5mm 13.6 25.5 13.9

Section of lead:2.5 - 4 mm² (USA Spec 14 - 12)   Imax = 37A
ITEMNO Dimension (mm)
USABOLTNO BOLT dia. d2Φ B L F H DΦ dΦ
RNB3.5 - 4 #8 4.3mm 8.0 18.0 7.7 6.0 5.0 3.0
RNBS3.5 - 5 #10 5.3mm 8.0 18.0 7.7
RNBL3.5 - 5 #10 5.3mm 12.0 21.4 7.7
RNB3.5 - 6 1/4 6.5mm 12.0 21.4 7.7


ITEMNO Dimension (mm)
USABOLTNO BOLT dia. d2Φ B L F H DΦ dΦ
RNB5.5 - 3.5 #6 3.7mm 7.2 15.7 5.9 6.8 5.6 3.4
RNBS5.5 - 4 #8 4.3mm 7.2 15.7 5.9
RNBL5.5 - 4 #8 4.3mm 9.5 19.8 8.3
RNB5.5 - 5 #10 5.3mm 9.5 19.8 8.3
RNB5.5 - 6 1/4 6.5mm 12.0 25.8 13.0
RNB5.5 - 8 5/16 8.4mm 15.0 28.0 13.7
RNB5.5 - 10 3/8 10.5mm 15.0 28.0 13.7
RNB5.5 - 12 1/2 13.0mm 19.2 32.4 16.0
