Copper connection terminal of peep mouth(DTGA type)

Inquire

Product Description

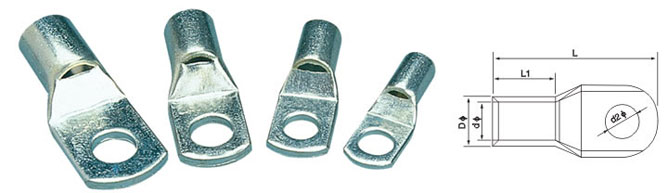

ITEMNO BOLT dia. d2Φ（mm) Dimension (mm) Section of lead(mm²)
dΦ DΦ L1 L
SC 1.5 - 5 5.2 1.8 3.7 5 16 1.5
SC 2.5 - 4 4.2 2.4 4.0 7 18 2.5
SC 2.5 - 5 5.2 20
SC 4 - 5 5.2 3.1 4.8 7 20 4
SC 4 - 6 6.5
SC 6 - 5 5.2 3.8 5.5 9 24 6
SC 6 - 6 6.5
SC 10 - 6 6.5 5 6.5 9 26 10
SC 10 - 8 8.4
SC 16 - 6 6.5 5.7 7.5 11 30 16
SC 16 - 8 8.4
SC 25 - 6 6.5 7.2 9 13 35 25
SC 25 - 8 8.4
SC 35 - 8 8.4 8.5 10.8 13.5 38 35
SC 35 - 10 10.5
SC 50 - 8 8.4 9.8 12.5 16 44 50
SC 50 - 10 10.5
SC 70 - 10 10.5 11.5 14.5 18 51 70
SC 70 - 12 13.0
SC 95 - 10 10.5 13.7 17 22 57 95
SC 95 - 12 13.0
SC 120 - 12 13 15 19 24 64 120
SC 120 - 16 17
SC 150 - 12 13 16.7 21 26 71 150
SC 150 - 16 17
SC 185 - 16 17 18.5 23 30 79 185
SC 240 - 16 21 21 26 38 93 240
SC 240 - 20 17
SC 300 - 16 17 24.5 30 42 103 300
SC 300 - 20 21
SC 400 - 16 17 27 34 42 113 400
SC 400 - 20 21
SC 500 - 16 17 30 38 48 123 500
SC 500 - 20 21
SC 630 - 20 21 35 45 56 135 630
SC 800 - BL - 39 50 60 170 800
SC 1000 - BL - 44 56 87 200 1000
