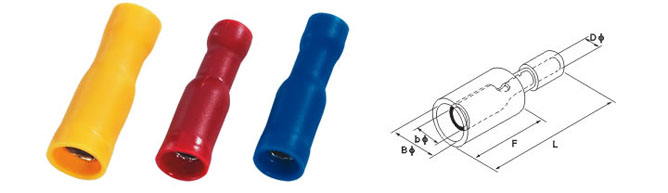

Bullet mother full insulation joint

Inquire

Product Description

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 ) Imax = 10A Material:Copper
ITEMNO	Thickness	Dimension(mm)					Color
ITEMNO	Thickness	bΦ	F	DΦ	H	L	Color
MPD 1.25 - 156	0.4	4.0	11.0	1.7	10.0	21.0	red

Section of lead1.5 - 2.5 mm² (USA Spec 16 - 14 ) Imax = 15A Material:Copper
ITEMNO	Thickness	Dimension(mm)					Color
ITEMNO	Thickness	bΦ	F	DΦ	H	L	Color
MPD 2 - 156	0.4	4.0	11.0	2.3	10.0	21.0	blue
MPD 2 - 195	0.4	5.0	11.0	2.3	10.0	21.0	blue

Section of lead:4 - 6 mm² (USA Spec 12 - 10 ) Imax = 24A Material:Copper
ITEMNO	Thickness	Dimension(mm)					Color
ITEMNO	Thickness	bΦ	F	DΦ	H	L	Color
MPD 5.5 - 195	0.4	5.0	12.0	3.4	13.0	25.0	yellow
